TempSustain Serien

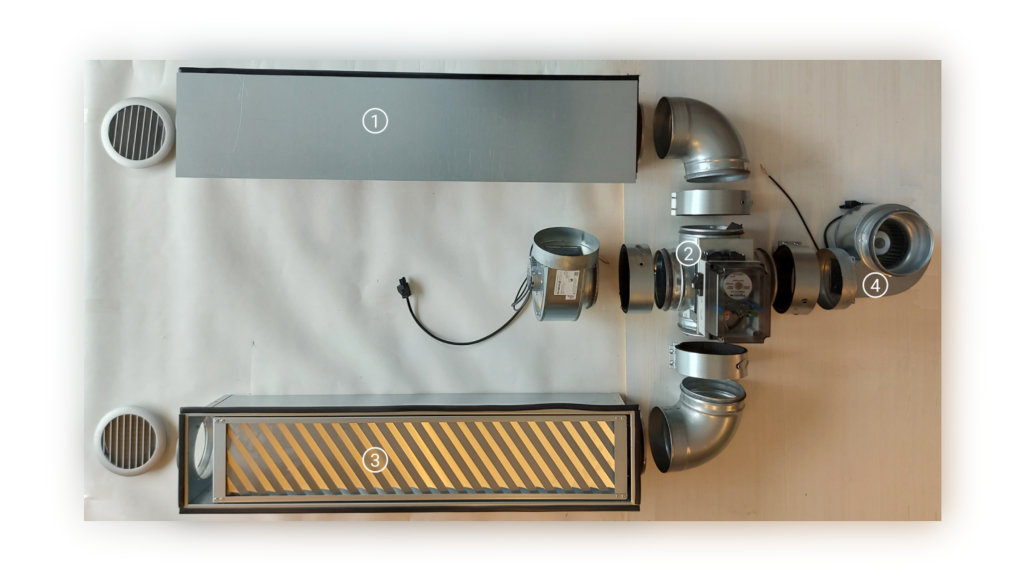

1. Louver Boxes

Made entirely of galvanized steel sheet for long life and corrosion protection. Easy to open for removing the louver package for cleaning.

2. Damper Housing

has a reliable design where all metal parts are galvanized or made of stainless steel.

3. Louver Package

made of aluminum sheets with a large heat storage surface. The sheets are set in a stable frame that is easy to remove for cleaning.

4. EC Fans

that provide the necessary pressure and low noise level. Can be controlled steplessly from 0-100% power. Can also be configured for, for example, lower power levels at night using the app.

FTX Units

Kantherm's TempSustain is a series of regenerative FTX units with high efficiency and long life. The units installed 40 years ago are still in operation. They are maintained, serviced, and sometimes have some new parts.

Flexibility

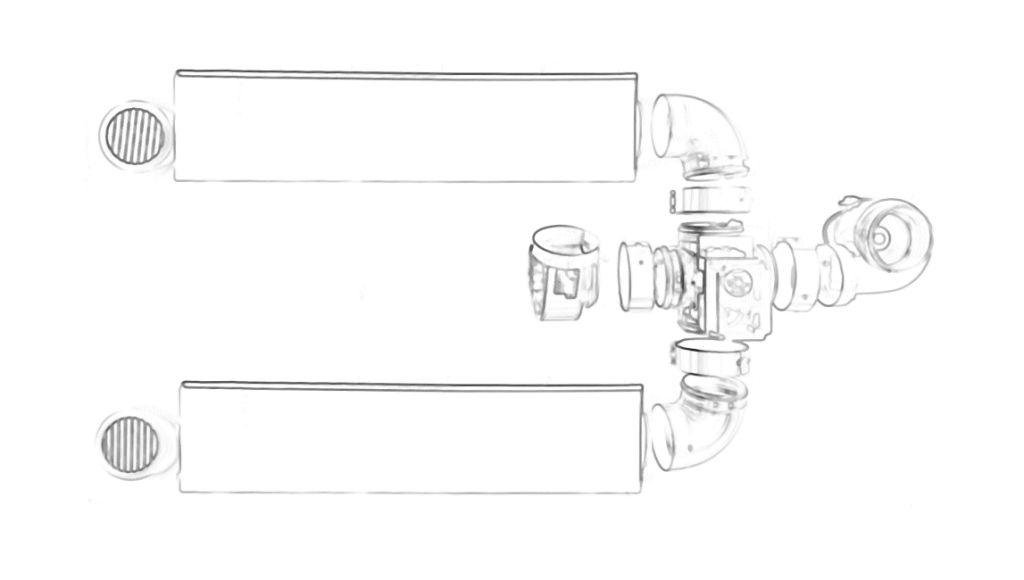

TempSustain's design is very flexible, allowing them to be installed in the most suitable way. It is therefore not necessary to install the unit as shown in the image above. Parts of the unit can be spread out as desired. However, it is important to keep the air path from the damper housing, over the louver packages, to the outside as short as possible. This is to minimize the amount of outgoing air that re-enters the house.

How TempSustain Works

Supply and exhaust air alternates between two louver packages. Warm indoor air heats one louver package while fresh outdoor air is drawn in and heated in the other. The damper switches the louver packages for supply and exhaust air, and the stored heat is recovered.

Product Sheets

Here you can download product sheets for all our air heat exchangers in the TS series. Model numbers for our units are based on their air capacity in cubic meters per hour. For example, TS300 is best suited for approximately 300 m³/h, etc.
